Notes on OpenNebula

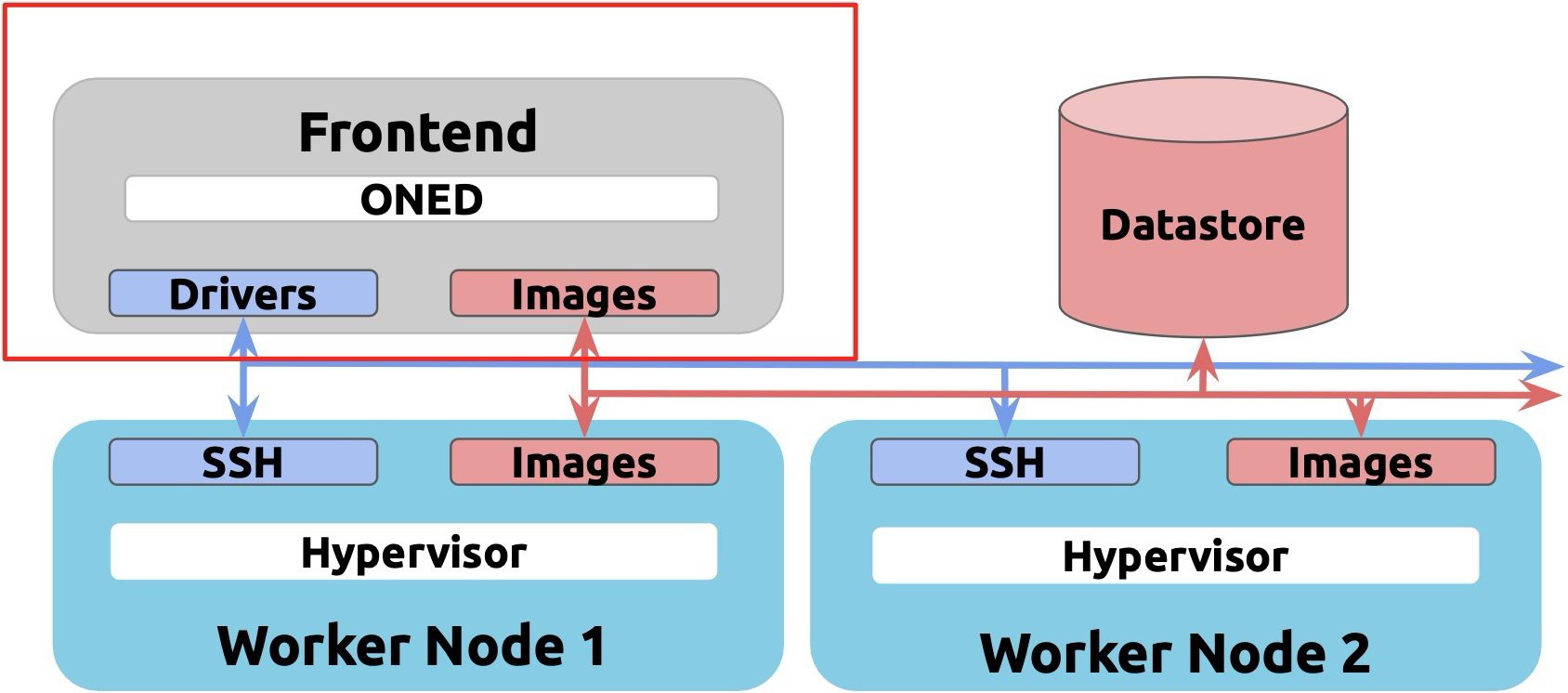

Typical Architecture

Is the graphical user interface of OpenNebula;
Responsible for serving the Web GUI, oned service, perform environment monitoring as well as management of network, storage or VMs
Listens on 2616/tcp;
Same website for admins and users, but has different views based on permissions;
Each user can set SSH keys, 2FA and labels on his account;
Labels can be used to categorize resources.
Inspect /var/log/one/oned.log and /var/log/one/monitor.log log files in case there is an error in the frontend.

To make sure the state of the cloud is persistent, OpenNebula will keep it stored in a SQL database;
The options are SQLite (automatic), MariaDB and MySQL;
This is configured on /etc/one/oned.conf at the host;
During the installation of the software the system user oneadmin will be created. Services and CLI tools are going to be used by this user;
During the first launch OpenNebula is going to create a Sunstone admin user for the deployment. Credentials are stored in a dedicated file .one/one_auth;
We must configure hosts that are going to run the VMs before adding them to a OpenNebula cluster and provide them with monitoring and virtualization drivers;
To configure the host we must add the OpenNebula repo, install opennebula-node-kvm and configure passwordless ssh connection from the Sunstone node to the host and vice versa;
Then on the Sunstone section Infrastructure/Hosts, add a KVM host by putting its IP;
Through the CLI:

sudo -i -u oneadmin

onehost create 'node2.dev.corp' -i kvm -v kvm

onehost show 1

Flags to output in a machine-readable format:

Can be created under the Networks section of Sunstone;
Can be a Bridge, Open vSwitch, VXLAN, etc;
On the Addresses tab, we can set the IP range of that network;
On the Context tab, we can set gateway, DNS and IP assignment method (DHCP or static);
On the Virtual Network subsection, we can make a reservation on a certain network, meaning a portion of the network is going to be locked and available only to specific resources. The network is partitioned by IP address;
On the Lease tab, we can also hold a specific IP address on a virtual network, so it cannot be used nor reserved;
The Network Templates section can be used to speed the creation of new virtual networks;
We can use the CLI as such: onevnet create <path/to/file> where file is a textfile containing parameters;

Is the repository of pre-build images, VM templates and service templates;
Can be public or private;
The public marketplace contains ready-to-use images;
These images are based on the vanilla ISOs, but with virtualization packages;
The different marketplaces configured are found under the Storage section, Marketplaces subsection;
The Apps subsection contains all images available to the user;

We don't create a VM based on an image, but rather on a template. The template points to an image;
Multiple VM templates can use the same image;
The Images subsection contains the downloaded images ready to be used, as well as system snapshots, which are considered an image;
A datastore is the location where files are saved. It can be:
Images Datastore, which stores the base operating system images, persistent data volumes, CD-ROMs.
System Datastore holds disks of running Virtual Machines. Disk are moved from/to the Images when the VMs are deployed/terminated.
Files & Kernels Datastore to store plain files (not disk images), e.g. kernels, ramdisks, or contextualization files.
Create a new datastore at Storage/Datastores on Sunstone;
Or use the CLI onedatastore create <path/to/file> where file is a textfile containing parameters;
Services are images that contain an app (such as Wordpress) along with an OS. They are also stored on a datastore.

Currently instantiated VMs can be found at Instances/VMs on Sunstone or queried through the CLI with onevm;
VM Templates are a textual representation of a VM;
It contains pointers to images, parameters and other configurations;
Some of those can be adjusted only by the administrator;
Services also rely on VM Templates;
VM Templates can be edited on the Templates section or queried through the CLI with onetemplate;
VMs can be deployed alone or in batches;
VMs can be accessed from Sunstone via VNC;
VMs can be backed up or turned into an Image;
We can make a snapshot of the VM's disk or of the entire VM;
Restoring a disk snapshot is only possible with the VM powered down;
Restoring a VM snapshot is possible at any time;
VM configuration can be changed while it is running. It'll go into a hotplug state to apply the changes;
VMs can be deployed through the CLI onevm create --cpu 1 --memory 1024 --disk 2 --nic 5;

Permissions exists for owners, groups and others;
The levels are use, manage and admin;
Use is for operations that do not modify the resource, manage for the ones that modify and admin for high responsability modifications;
Each user is going to be attached to at least one group;
Each group may have a separate group administrator. Group administrators are delegated with permissions to manage groups resources and add new users;
By default, OpenNebula has two groups - oneadmin and users;
By default, OpenNebula also going to have two users - oneadmin (if one_auth wasn't altered) and serveradmin(service user used for internal purposes);
Groups can be created at System/Groupson Sunstone or through the CLI onegroup create --name ops --admin_user ops-admin --admin_password 'Pa$$w0rd';
can be created at System/Userson Sunstone or through the CLI oneuser create basic_user 'Pa$$w0rd' --group 102;
